UA VOLT 1 간단 리뷰입니다 (내레이션 샘플 첨부) 오디오인터페이스

김선호 쪽지보내기 홈페이지 자기소개 아이디로 검색 전체게시물 Lv.21 작성 작성일 2023.03.23 20:50
조회 5,131 댓글 5

https://youtu.be/1Yrfp4jk04w

00:00 Default mode

00:27 Vintage mode (UA 610 Tube - Preamp Emulation)

Mic : SM7B

I/O : UA Volt 1

죽는 날까지 하늘을 우르러

한점 부끄럼이 없기를、

잎새에 이는 바람에도

나는 괴로워했다。

별을 노래하는 마음으로

모든 죽어가는것을 사랑해야지

그리고 나안테 주어진 길을

거러가야겠다。

오늘밤에도 별이 바람에 스치운다。

1941. 11. 20

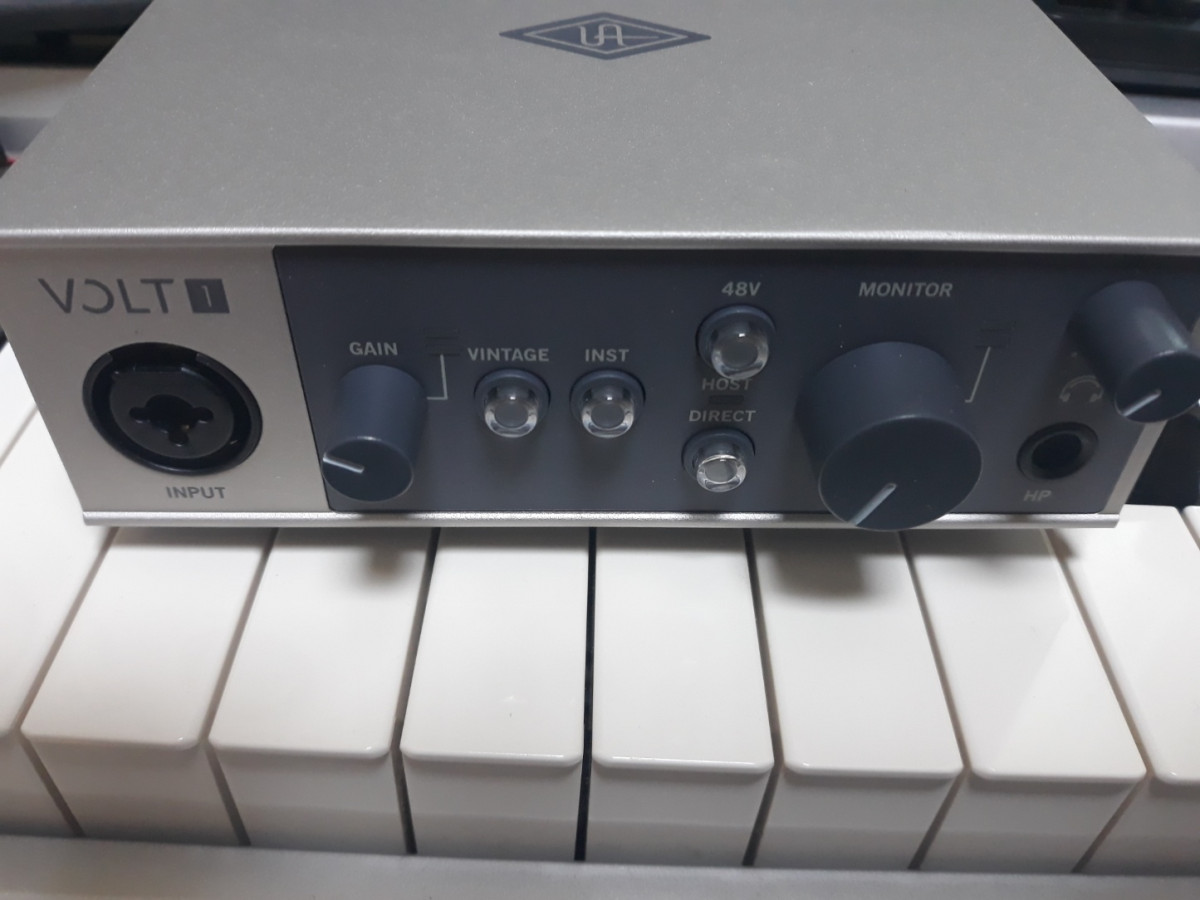

1. 디자인

외관상 디자인이 이렇게 아름다운 오인페는 처음 봅니다.

2. 준수한 AD/DA

Microphone Input(s)
Frequency Response	20 Hz to 20 kHz, ±0.1 dB
Dynamic Range (A–weighted)	112 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)	-103 dB (0.0007 %)
Equivalent Input Noise (150 Ohms, A-weighted)	-127 dBu
Maximum Input Level	9 dBu
Input Impedance	3 Kilohms
Available Gain	55 dB
Phantom Power	+48V (switchable)
Connector Type	XLR Female, pin 2 positive
Instrument Input(s)
Frequency Response	20 Hz to 20 kHz, ±0.05 dB
Dynamic Range (A–weighted)	111 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)	-84 dB (0.006 %)
Maximum Input Level	12.5 dBu
Input Impedance	1 Megohms
Gain Range	55 dB
Connector Type	¼” TS unbalanced
Line Input(s)
Frequency Response	20 Hz to 20 kHz, ±0.05 dB
Dynamic Range (A–weighted)	111 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)	-102 dB (0.0008 %)
Maximum Input Level	22 dBu
Input Impedance	15 Kilohms
Gain Range	55 dB
Connector Type	¼” TRS balanced or TS unbalanced
Line Inputs 3-4 (Volt 4, 476 only)
Frequency Response	20 Hz to 20 kHz, ±0.05 dB
Dynamic Range (A–weighted)	113 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)	-105 dB (0.0006 %)
Maximum Input Level	18 dBu
Input Impedance	10 Kilohms
Connector Type	¼” TRS balanced or TS unbalanced
Monitor & Line Outputs
Frequency Response	20 Hz to 20 kHz, ±0.1 dB
Dynamic Range (A–weighted)	110 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS)	-102.5 dB (0.00075%)
Maximum Output Level	15 dBu
Output Impedance	100 Ohms
Connector Type	¼” TRS balanced or TS unbalanced
Stereo Headphone Outputs
Frequency Response	20 Hz to 20 kHz, ±0.1 dB
Dynamic Range (100K load, A-weighted)	110 dB
Total Harmonic Distortion + Noise (1 kHz @ -1 dBFS, 300 Ohms)	-100 dB (0.001%)
Maximum Output Power into 32 Ohms Maximum Output Power into 300 Ohms Maximum Output Power into 600 Ohms	84 mW per channel 22 mW per channel 12 mW per channel
Connector Type	¼” TRS Stereo
